Foundation Leveling and Settlement Repair in Keller, TX
We level settling foundations on Keller homes. A foundation settles when the soil under part of it drops, and the house follows: the floor slopes, doors drift out of square and cracks open in the walls. Call Foundation Repair Keller TX at 123-456-7890 for a free estimate.
Leveling is a measured job. We survey the floor, find the high and low points, raise the sunken part toward level and stabilize it so it stays. We measure again at the end, so you have the before and after on paper.
What Foundation Leveling Involves in Keller
We measure the movement first
The Texas Section of the American Society of Civil Engineers defines deflection as the maximum deviation from a straight line between two points, divided by the distance between them, and tilt as the planar variation from level across the whole foundation. It uses L/360 as a comparison limit for deflection and states that a floor slope over 1 percent is usually noticeable. We measure floor elevations across the house so the repair targets the part that moved. Signs of foundation problems in Keller
We raise and stabilize the settled section
A settled slab is lifted on piers set to firmer ground. A settled pier and beam floor is raised and shimmed or rebuilt. Slab foundation repair and pier and beam foundation repair
We stop the cause
A leaking line, a bad grade and a downspout that empties beside the wall all keep the soil moving. We correct them with the lift. Foundation leak repair
We measure again
The ASCE guidelines call for floor elevation surveys after repair, and for the engineer to keep the records and give the client a copy. We take the same measurements after the lift and hand you both sets.
Work is performed by independent professionals. Every project starts with an inspection and a written price before any work begins.
How We Level a Foundation

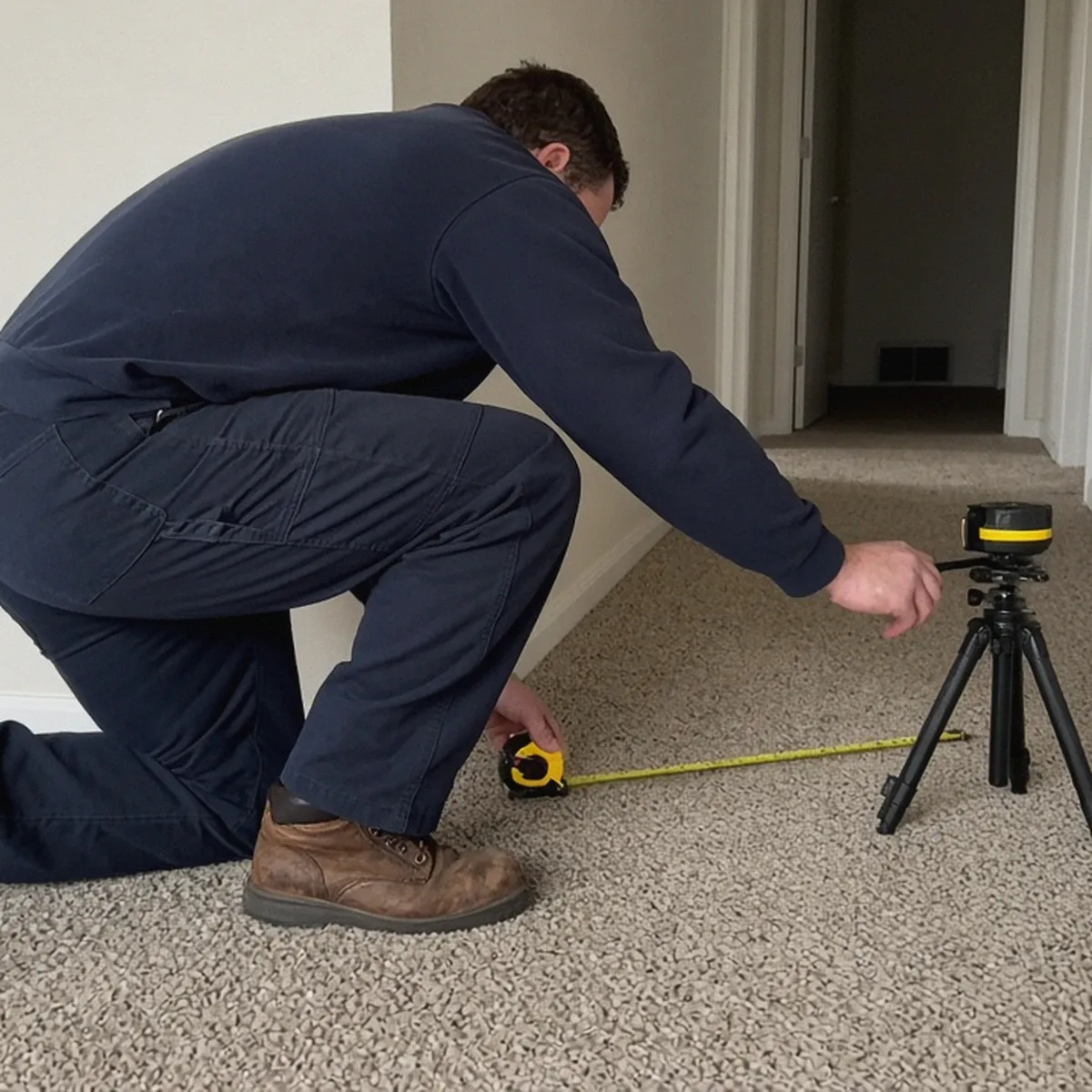

First, we measure floor elevations and mark cracks and sticking doors. Second, we check the drainage and test the water supply and drain lines for leaks, because the ASCE guidelines advise testing them if jacking or lifting is part of the repair. Third, we write a plan with where the lift happens, the pier or shim locations and the price. Finally, we lift, measure and walk the floor with you.
Leveling has a limit, and the guidelines state it: it is unlikely that elevation adjustments will result in a level foundation. A house that has moved for years does not return to the day it was poured. The goal is a foundation that performs.
Why Keller Foundations Settle
Soil moisture drives it. The Texas Section of ASCE states that Texas has large areas with clayey soils that shrink and swell with changes in soil moisture. The USDA soil survey for Tarrant County maps mostly fine sandy loams around Keller, with clay soils in patches. USDA describes the Sanger series as 40 to 60 percent clay with high shrink-swell, with cracks 1 to 3 inches wide when dry.
The Dallas/Fort Worth weather station records about 20 days a year at or above 100°F and about 37 inches of precipitation. The soil dries in the heat and takes on water in the rain. Census Bureau figures show about 90% of Keller's occupied homes were built in 1980 or later, so most of them have been through decades of that cycle. Why Keller soil moves foundations
What Foundation Leveling Costs in Keller
A 2026 HomeGuide national guide (published February 6, 2026) puts shim-based leveling at $1,000 to $3,500, leveling that requires underpinning at $10,000 to $20,000, and settling or sinking repair at $4,500 to $20,000. It puts steel piers at $1,000 to $1,600 per pier.
Those are national averages, not Keller quotes. How far the foundation dropped, how many piers it takes and what is found under the house set the price. What foundation repair costs in Keller
Frequently Asked Questions
What does foundation leveling mean?
Foundation leveling raises the part of a foundation that sank and holds it there. On a slab it means piers or grout under the sunken section. On a pier and beam house it means shims or rebuilt piers under the framing. The goal is a floor that performs, with doors that close and floors that stop sloping, and not a perfect plane.
How do I know if my foundation has settled?

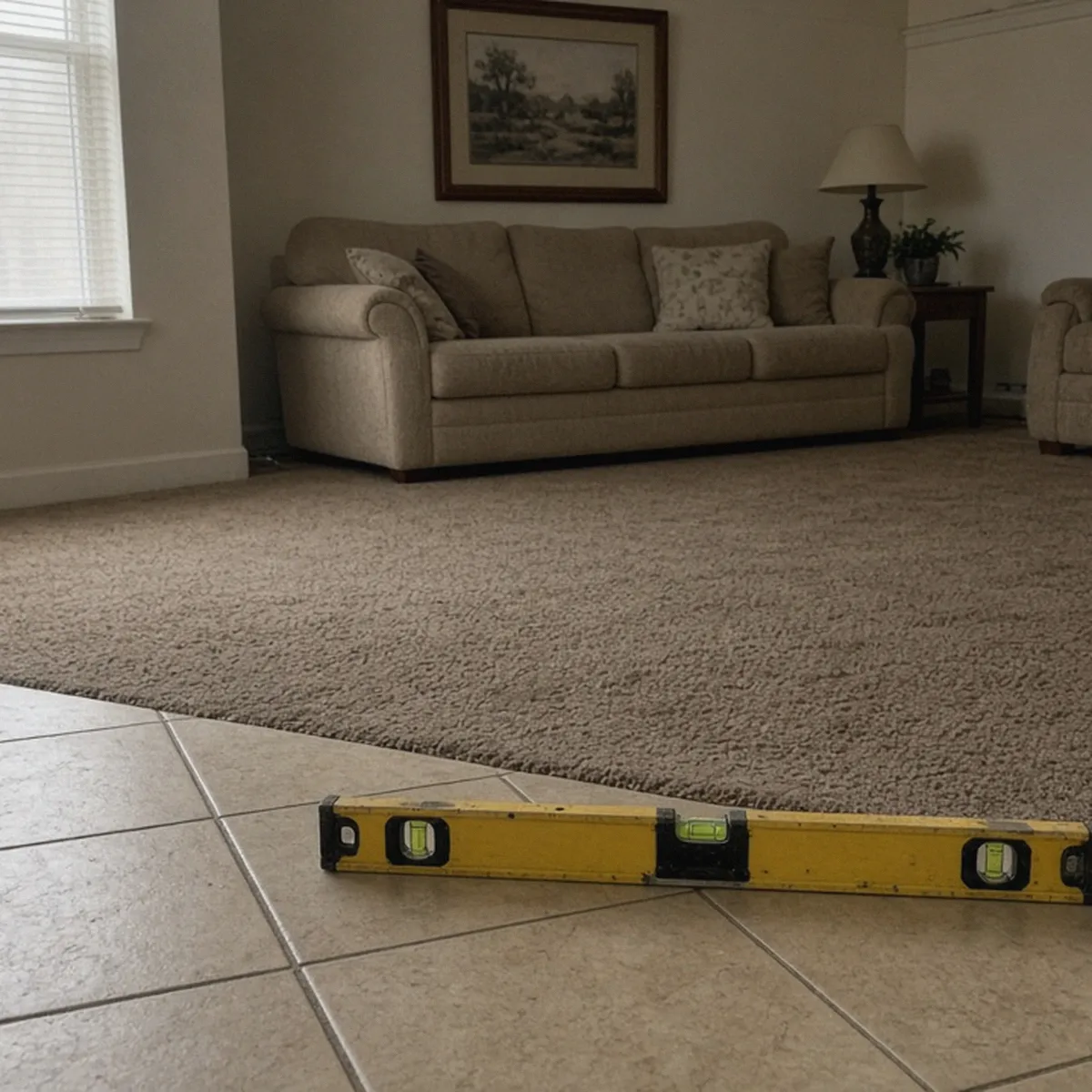

Look for a sloping floor, doors and windows that stick, diagonal cracks at door and window corners, and gaps at the baseboard. The ASCE guidelines state that a floor slope over 1 percent, about 1 inch over 8 feet, is usually noticeable. A floor survey gives the real measurement. Signs of foundation problems in Keller
How much does foundation leveling cost in Keller?
HomeGuide's 2026 national guide puts shim leveling at $1,000 to $3,500, underpinning-based leveling at $10,000 to $20,000 and settling or sinking repair at $4,500 to $20,000. Those are national averages, not Keller quotes. The amount of settlement, the number of piers and access to the house set the price. An on-site inspection gives the real number.
Will leveling close the cracks and fix sticking doors?
It stops the movement that caused them, and doors often close again once the floor is back in range. Cracks that opened stay open until they are repaired, and we repair them after the lift. The ASCE guidelines state that elevation adjustment rarely produces a level foundation, so we tell you what the lift can and cannot do before it starts.
Can a foundation settle again after repair?
Yes, if the cause is still there. A leak, a bad grade or a downspout at the wall keeps feeding the soil. We fix the cause as part of the plan and measure the floor after, so any later change shows against the numbers. Drainage and your foundation
Get a Free Estimate for Foundation Leveling in Keller
For foundation leveling in Keller, call Foundation Repair Keller TX at 123-456-7890 for a free estimate. You can also reach us here, or start from our Keller foundation repair page.
